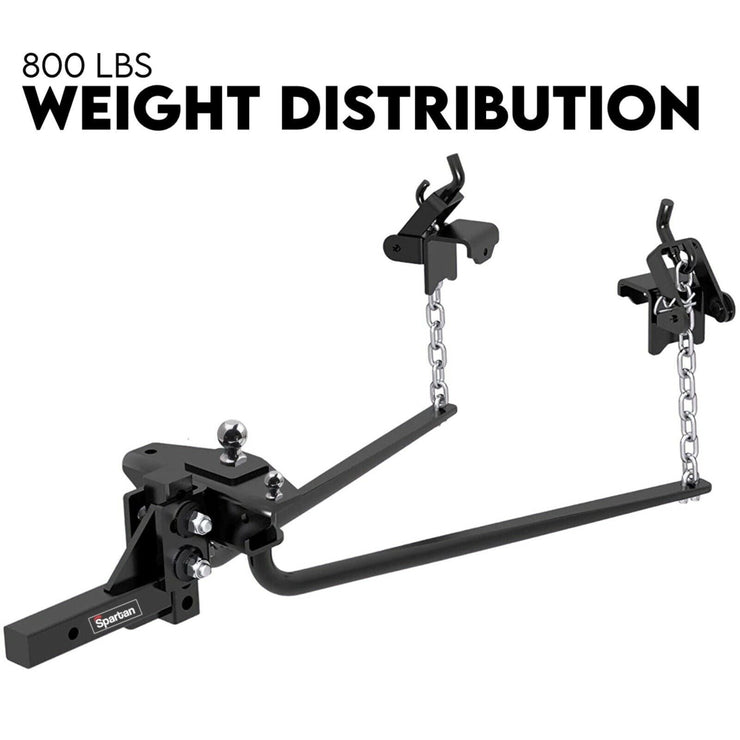

HEAVY-DUTY CARAVAN WEIGHT DISTRIBUTION HITCH ANTI SWAY BARS - 800LBS

PRODUCT OVERVIEW:

A Weight Distribution Hitch could be one of the most important tools for your vehicles and trailers. At Trade Hero Australia we sell the highest quality and heavy-duty caravan weight distribution kit at a very competitive price.

They help reduce trailer sway and excessive tyre wear by returning the towing vehicle's natural balance. Also, they restore the towing vehicles steering and braking efficiency, headlight alignment and suspension geometry for a smooth and enjoyable towing experience.

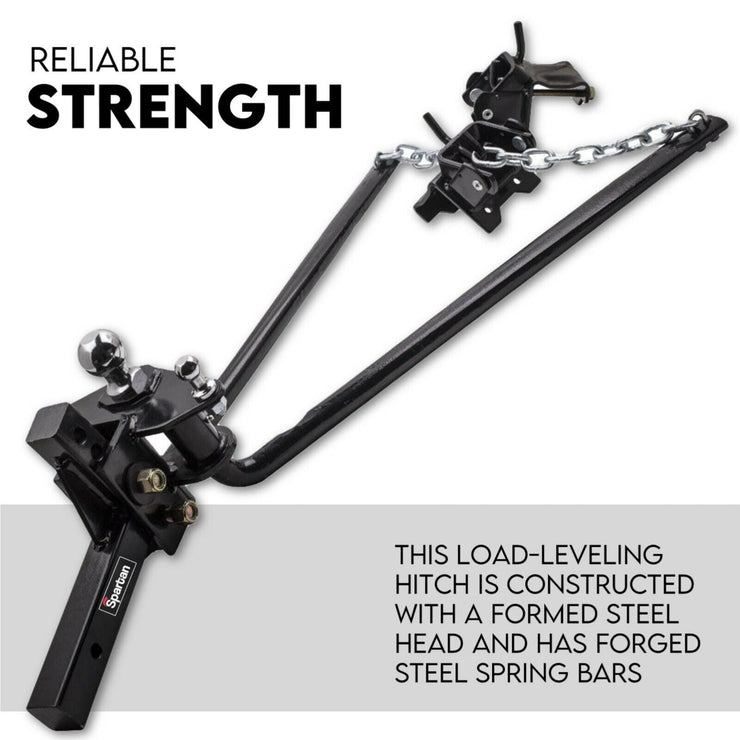

The solid steel shank is fully reversible, so it is easy to obtain your required height.

The kit comes complete with a solid steel shank, ball mount head, instructions. (See parts picture)

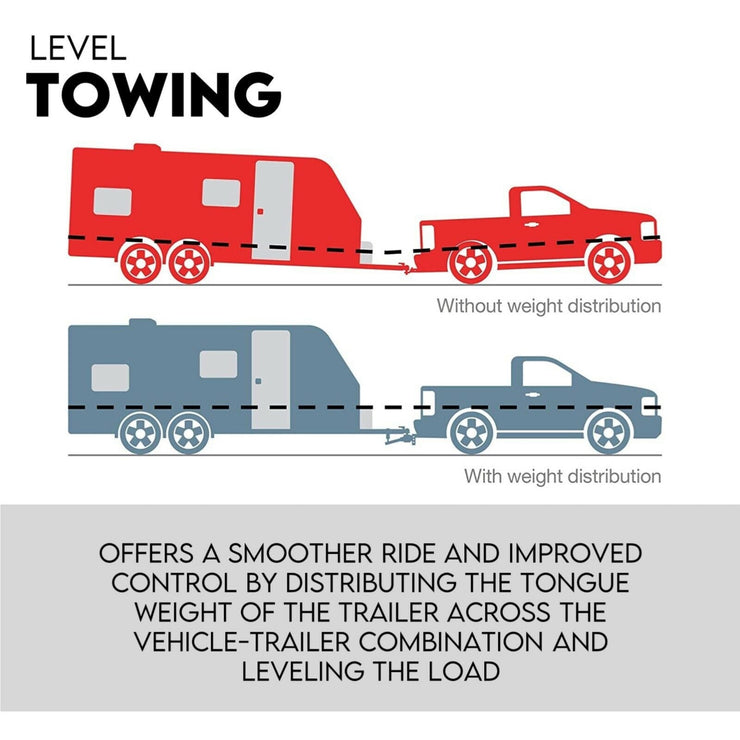

A Weight Distribution Hitch or WDH transfers the weight of the trailer hitch from the rear of the vehicle to two places: the front wheels of the towing vehicle and the tyres of the trailer being towed. Put simply, it balances both the front and rear ends of the vehicle.

Our weight distribution systems are designed to distribute weight overall axles, levelling the towing vehicle's ride and trailer for increased stability, control, and economy.

PRODUCT FEATURES:

• Suit standard 50mm tow bar receivers

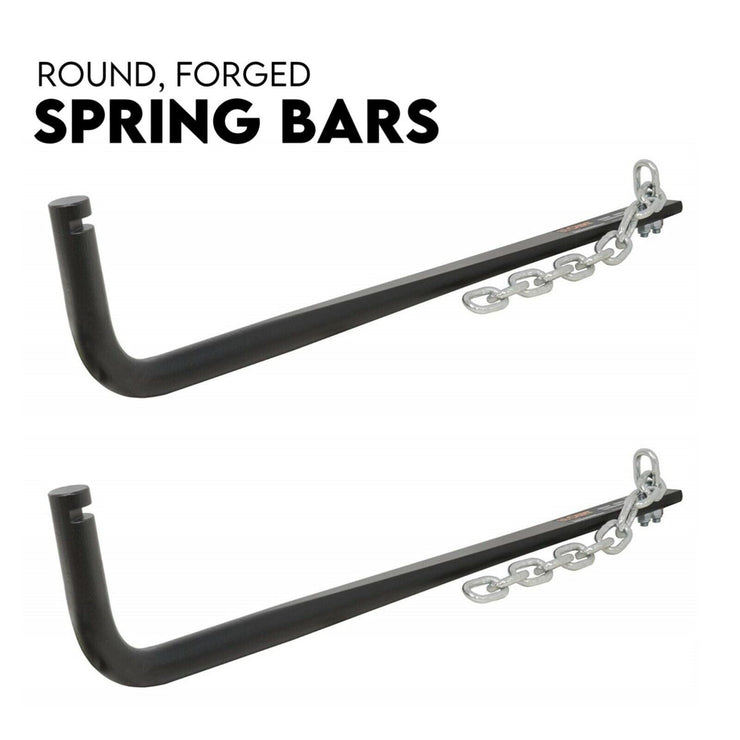

• Round bar-style spring bars allow extra clearance from A-Frame when turning.
• Chain brackets and lift handle accessory.
• Quick-adjust head featuring a course tooth adjustment washer - up to 6 tilt positions,
• Strong cast head featuring double-sided friction sway compatibility.

PLEASE NOTE:

• Please check the dimensions of the hitch shank to make sure the sizes are suitable for your tow vehicle and caravan ball weights and heights .

PRODUCT SPECIFICATIONS:

• Maximum Capacity: 800 Lbs
• Suits Tongue Weight: between 501lbs to 800lbs (227.25kg - 365kg)
• Suits Trailer Weights: (gross) under 8000lbs (3.6T)
• Installation: A simple installation instruction manual is included
• Maximum Height Adjustment: 8" (203.2mm)
• Raised Ball Platform: for greater coupler clearance

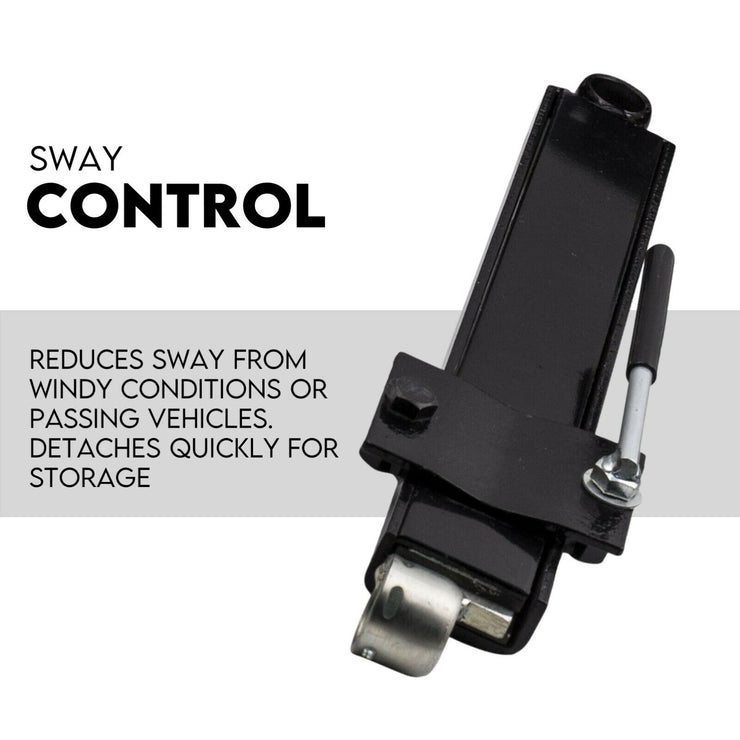

• Sway Control: Dual sway control platform
• Shank Length: 10"(254mm)

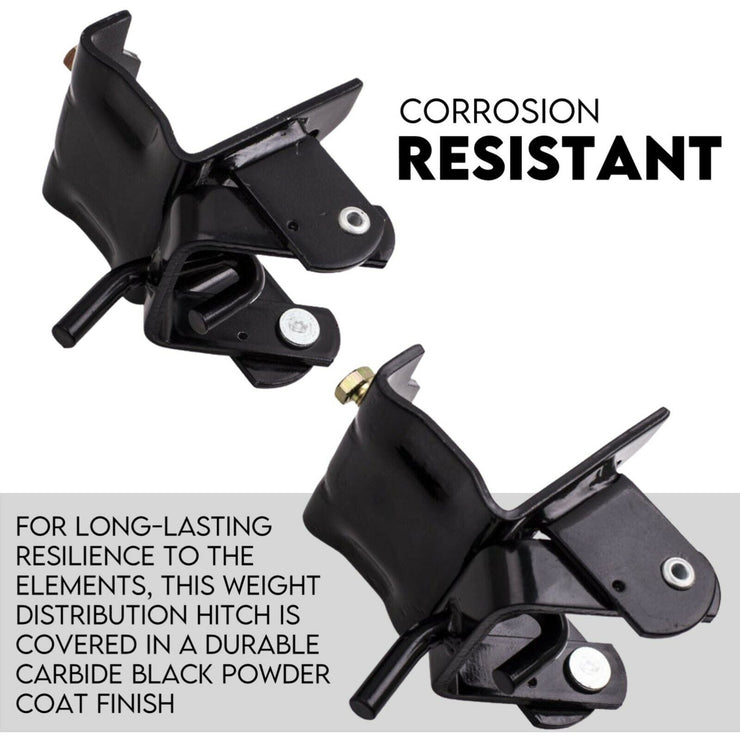

• Finish: Powder-coated finish and steel ball

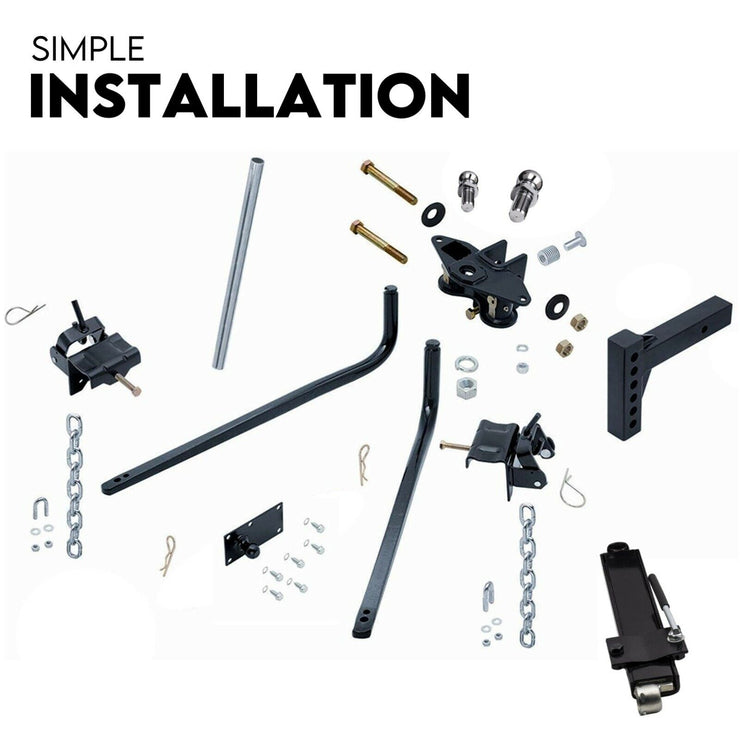

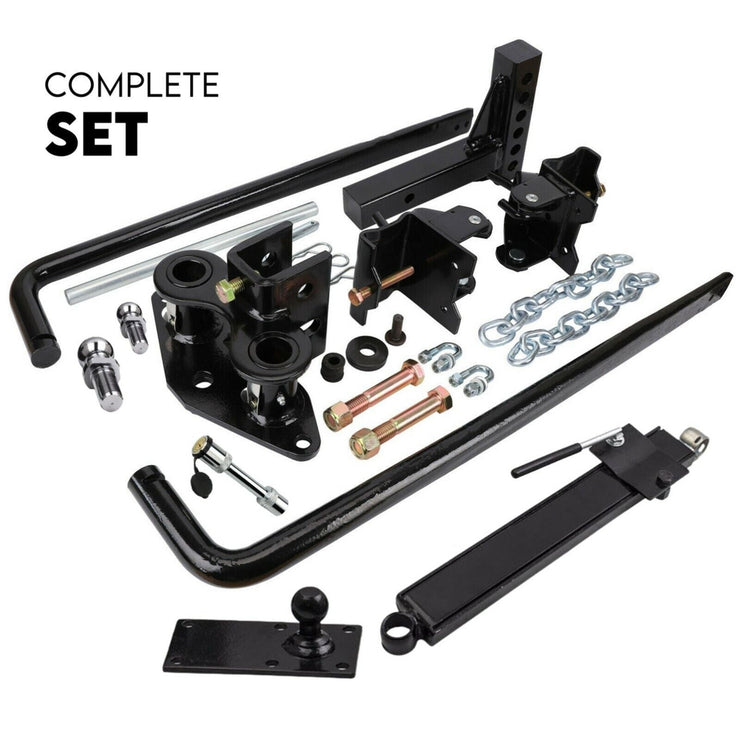

PACKAGE CONTENTS:

• x1  Shank Assembly
• x1  Head Assembly
• x2  Spring Bar Retainers
• x2  Spring Bar Sets
• x1  Lift Handle
• x2  Chain lift brackets
• x2  Hex Bolts
• x1  Reducer Bushing
• x1  Lock Pin
• x3  Hair Pins
• x2  Locknuts
• x1  Pin
• x7  Hardened Washers

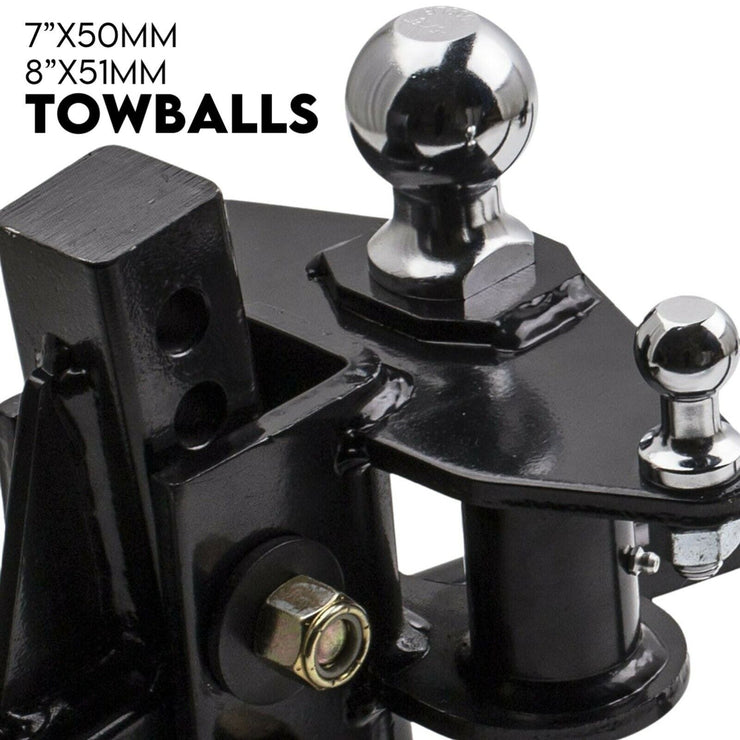

• x2  Tow Balls
• x1  Sway Control

PRODUCT RETURNS:

• For returns due to change of mind, a 20% restocking fee will be applied
